Gyprock Flexible is a 6.5mm plasterboard sheet with an enhanced gypsum core in a heavy duty liner paper that enables the board to bend to a small radius.
This plasterboard is installed in two layers for increased strength and the long edges of the panels are recessed for flush jointing to a smooth, continuous surface.
Gyprock Flexible

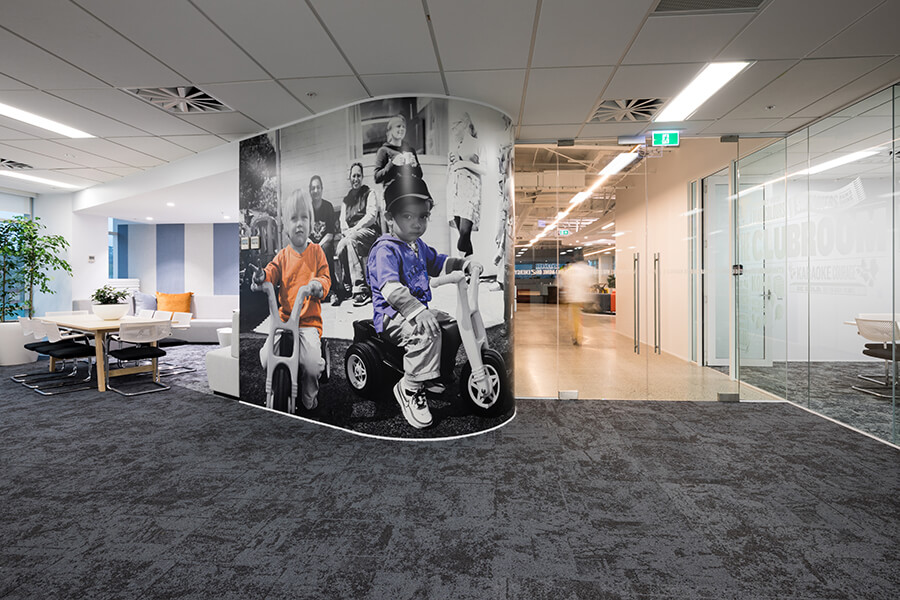

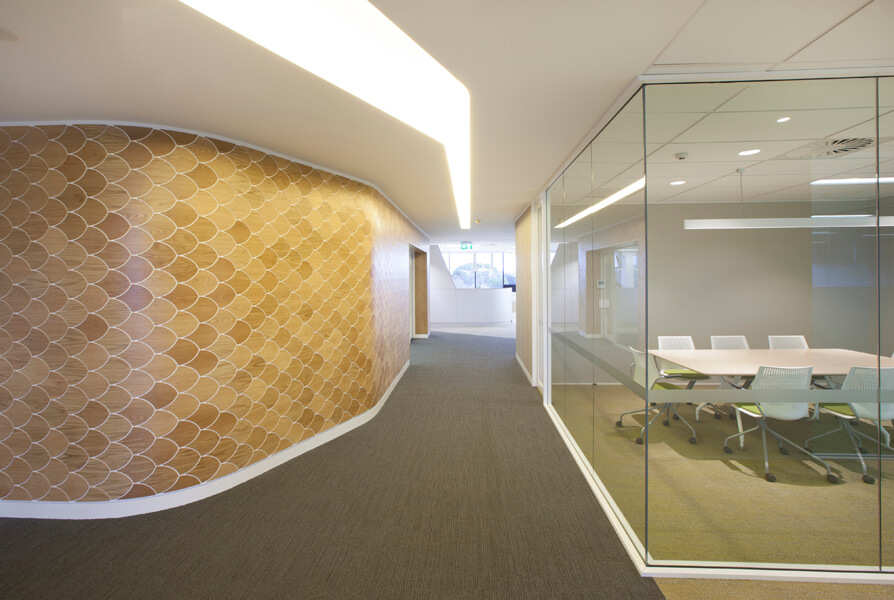

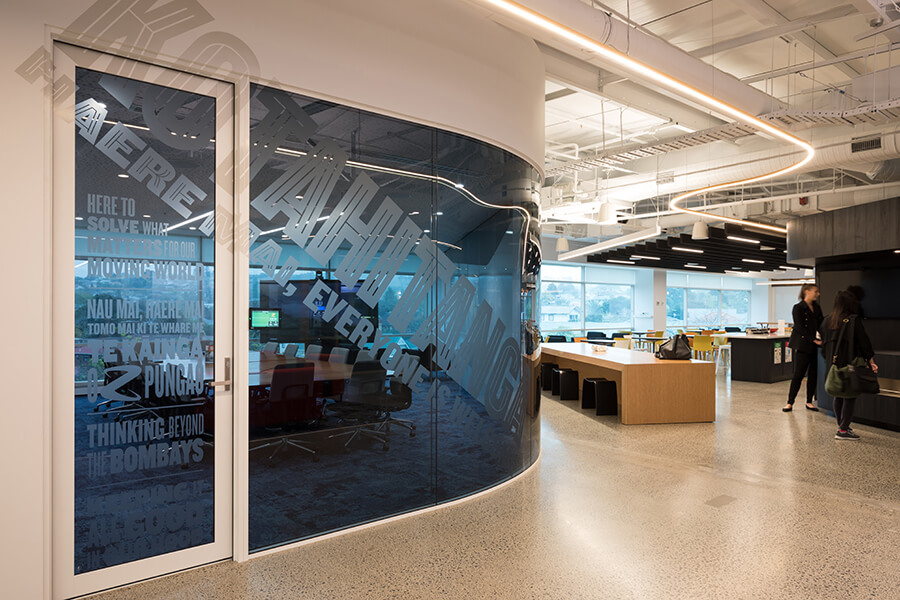

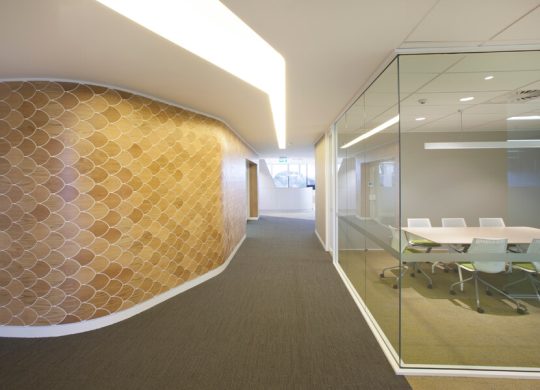

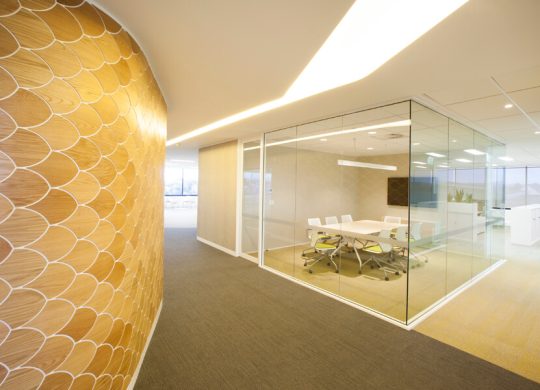

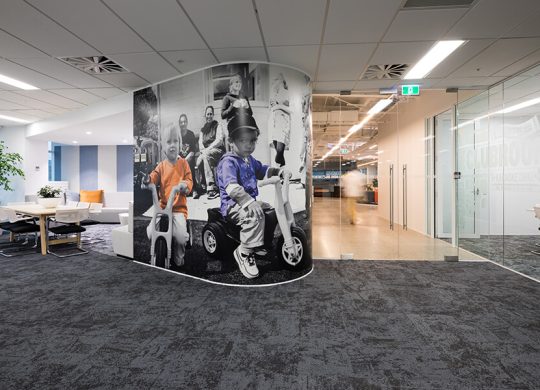

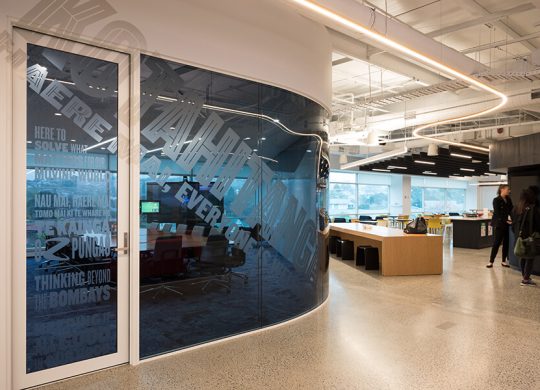

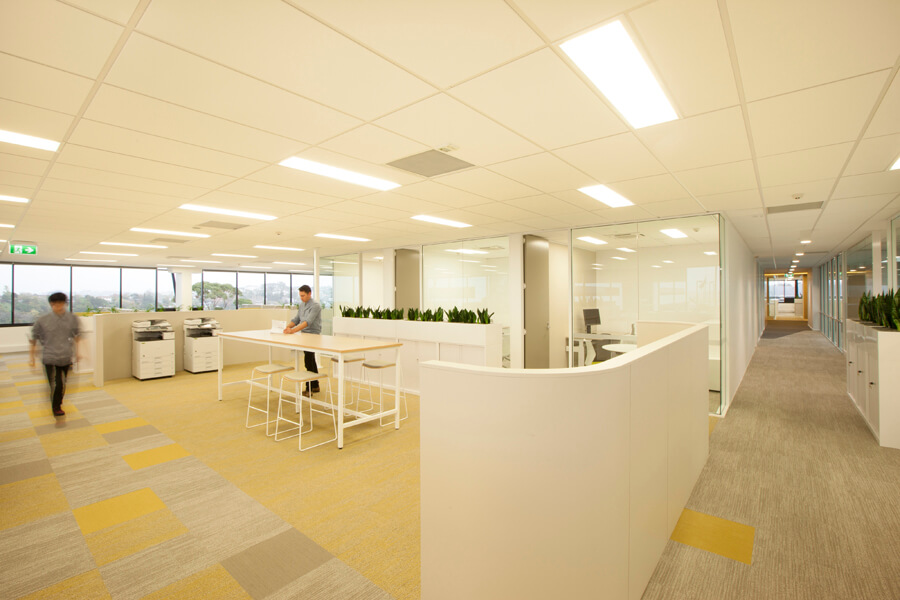

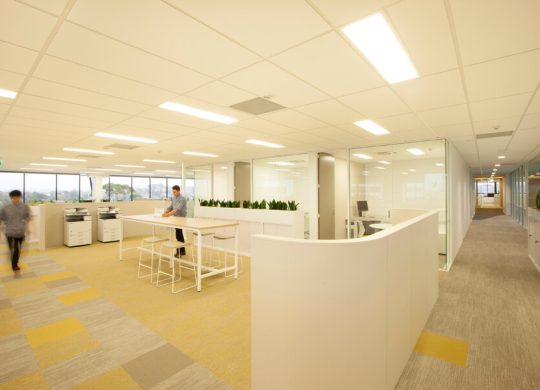

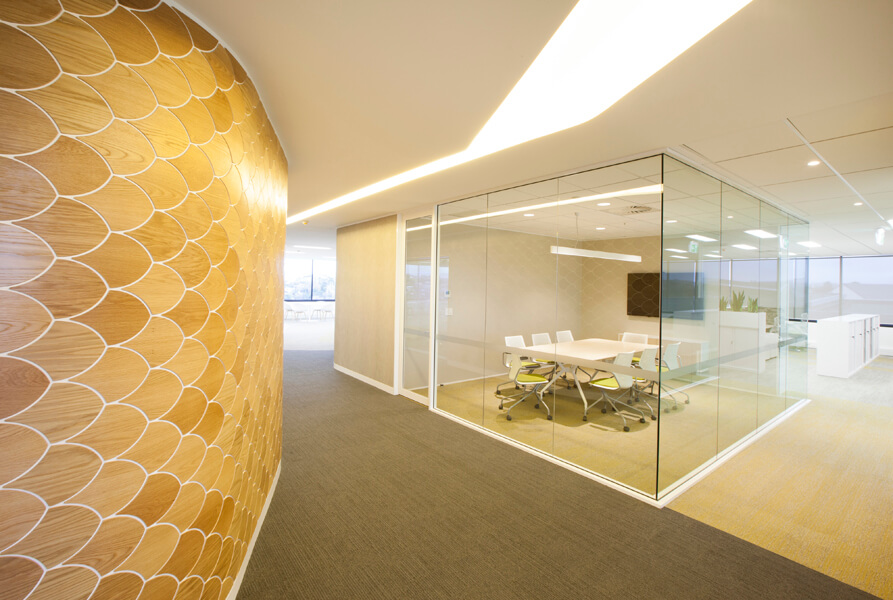

»Curved walls and ceilings
»Freeform bulkheads and features
Product options
Gyprock Flexible Plasterboard is manufactured to a 6.5mm thickness in 1200mm wide panels that are 3600mm long.
Installation
Gyprock Flexible Plasterboard is typically installed in two layers for a 13mm thick final lining thickness allowing it to match other lining thicknesses in commercial contruction.
This installation can accommodate a 250mm radius design for a convex curve and 450mm radius for a concave curve.[/vc_column_text][/vc_column_inner][vc_column_inner width="1/2"][vc_gallery type="flexslider_slide" interval="3" images="7224,7225,7226,7227,7228" img_size="540x390" el_class="productzoom-icon"][/vc_column_inner][/vc_row_inner][vc_row_inner content_placement="middle" el_class="properties-section py-100"][vc_column_inner width="1/2"][vc_single_image image="7228" img_size="full"][/vc_column_inner][vc_column_inner width="1/2"][vc_column_text el_class="image-width-text-content"]Product Options
Gyprock Flexible is available in the following sizes:
Thickness
6.5mm
Widths
1200mm
Lengths
3600mm
Edge Profiles
Recessed Edge for regular jointing, Recessed Edge/Square Edge for low profile architectural mouldings
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Health and Safety
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Manufacturing Tolerances
Nominal Thickness
6.5mm ± 0.5mm
Nominal Widths
1200 ± 3mm
Nominal Lengths
3600mm ± 5mm
Squareness
Cut ends ± 3mm in the width of the board
Physical Properties
Nominal Board Weight*
4.3kg/m2
Thermal Resistance
0.03 m2K/W
Fire Hazard Properties∆
Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊
Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content
10.2%
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_single_image image="3183" img_size="full"][vc_custom_heading text="Potters Whitepapers" font_container="tag:h4|font_size:18px|text_align:left|color:%23323232" use_theme_fonts="yes" link="url:https%3A%2F%2Fdev.potters.co.nz%2Fwhitepapers%2F|title:Whitepapers" el_class="vc_gitem-post-data-source-post_title"][vc_column_text css=".vc_custom_1737085649400{margin-bottom: 20px !important;}"]Browse the Potter Interior System collection of white papers. Get inspired & get the specifications you need for your project.[/vc_column_text][vc_btn title="Read More" style="custom" custom_background="" custom_text="#666666" link="url:https%3A%2F%2Fdev.potters.co.nz%2Fwhitepapers%2F|title:Whitepapers"][/vc_column_inner][vc_column_inner width="1/3"][vc_single_image image="5714" img_size="350*271"][vc_custom_heading text="CAD Downloads" font_container="tag:h4|font_size:18px|text_align:left|color:%23323232" use_theme_fonts="yes" link="url:https%3A%2F%2Fdev.potters.co.nz%2Fcad-download%2F|title:Whitepapers" el_class="vc_gitem-post-data-source-post_title"][vc_column_text css=".vc_custom_1737087863515{margin-bottom: 20px !important;}"]Potter Interior Systems has a wide range of resources to help you complete your project. Download your CAD files today.[/vc_column_text][vc_btn title="Read More" style="custom" custom_background="" custom_text="#666666" link="url:https%3A%2F%2Fdev.potters.co.nz%2Fcad-download%2F|title:Whitepapers"][/vc_column_inner][vc_column_inner width="1/3"][vc_single_image image="3458" img_size="full"][vc_custom_heading text="Aluminium Specification Manual" font_container="tag:h4|font_size:18px|text_align:left|color:%23323232" use_theme_fonts="yes" link="url:https%3A%2F%2Fdev.potters.co.nz%2Ffile-downloads%2Faluminium-partition-specifier-manual%2F|title:Whitepapers" el_class="vc_gitem-post-data-source-post_title"][vc_column_text css=".vc_custom_1737087875458{margin-bottom: 20px !important;}"]To ensure you are specifying the right partition suite for your project, view our extensive range of Aluminium Partition Suites.[/vc_column_text][vc_btn title="Read More" style="custom" custom_background="" custom_text="#666666" link="url:https%3A%2F%2Fdev.potters.co.nz%2Ffile-downloads%2Faluminium-partition-specifier-manual%2F"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]
[post_title] => Gyprock Flexible Plasterboard
[post_excerpt] => Gyprock Flexible is a 6.5mm thick plasterboard sheet with an enhanced gypsum core, designed to bend for small radius curves.
[post_status] => publish
[comment_status] => closed
[ping_status] => closed
[post_password] =>
[post_name] => gyprock-flexible-plasterboard
[to_ping] =>
[pinged] =>
[post_modified] => 2025-01-22 22:51:33
[post_modified_gmt] => 2025-01-22 11:51:33
[post_content_filtered] =>
[post_parent] => 0
[guid] => https://dev.potters.co.nz/?post_type=product&p=5893
[menu_order] => 0
[post_type] => product
[post_mime_type] =>
[comment_count] => 0
[filter] => raw
)
Gyprock Flexible is a 6.5mm plasterboard sheet with an enhanced gypsum core in a heavy duty liner paper that enables the board to bend to a small radius.
This plasterboard is installed in two layers for increased strength and the long edges of the panels are recessed for flush jointing to a smooth, continuous surface.
Gyprock Flexible
»Curved walls and ceilings
»Freeform bulkheads and features
Product options
Gyprock Flexible Plasterboard is manufactured to a 6.5mm thickness in 1200mm wide panels that are 3600mm long.
Installation
Gyprock Flexible Plasterboard is typically installed in two layers for a 13mm thick final lining thickness allowing it to match other lining thicknesses in commercial contruction.
This installation can accommodate a 250mm radius design for a convex curve and 450mm radius for a concave curve.
Product Options
Gyprock Flexible is available in the following sizes:
Thickness
6.5mm
Widths
1200mm
Lengths
3600mm
Edge Profiles
Recessed Edge for regular jointing, Recessed Edge/Square Edge for low profile architectural mouldings
Product Manufacture
Gyprock Flexible is manufactured by CSR Gyprock in Australia to stringent product specifications.
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Health and Safety
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Manufacturing Tolerances
Nominal Thickness
6.5mm ± 0.5mm
Nominal Widths
1200 ± 3mm
Nominal Lengths
3600mm ± 5mm
Squareness
Cut ends ± 3mm in the width of the board
Physical Properties
Nominal Board Weight*
4.3kg/m2
Thermal Resistance
0.03 m2K/W
Fire Hazard Properties∆
Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊
Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content
10.2%
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
